Atlas Wall Bracket
£52.80
Additional information
| Weight | 1.1 kg |
|---|---|
| Dimensions | 200 × 125 × 33 mm |

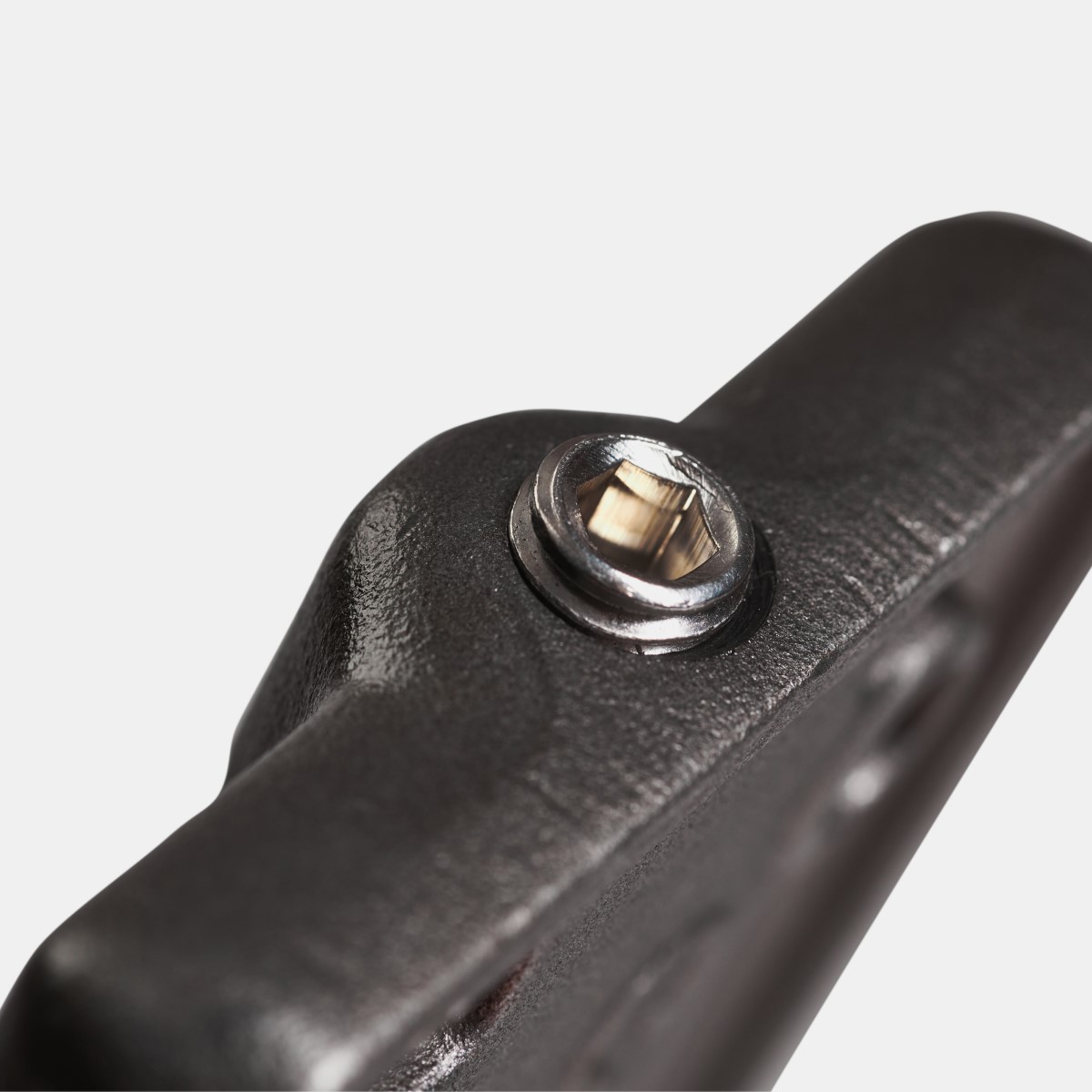

- Pair of two-piece brackets for wall-mounting sectional radiators
- Strong, secure fixing with four screw holes
- Vertically adjustable for accurate installation
- Recommended minimum of four brackets per radiator
- Maximum load 100kg per pair
- Four sizes for various radiator depths
Atlas Wall Bracket
Exclusive to Castrads
Designed by our in-house product team, Atlas Wall Brackets are small but mighty.
Technical Data
| Nominal Size | SKU | A | B | C | D |

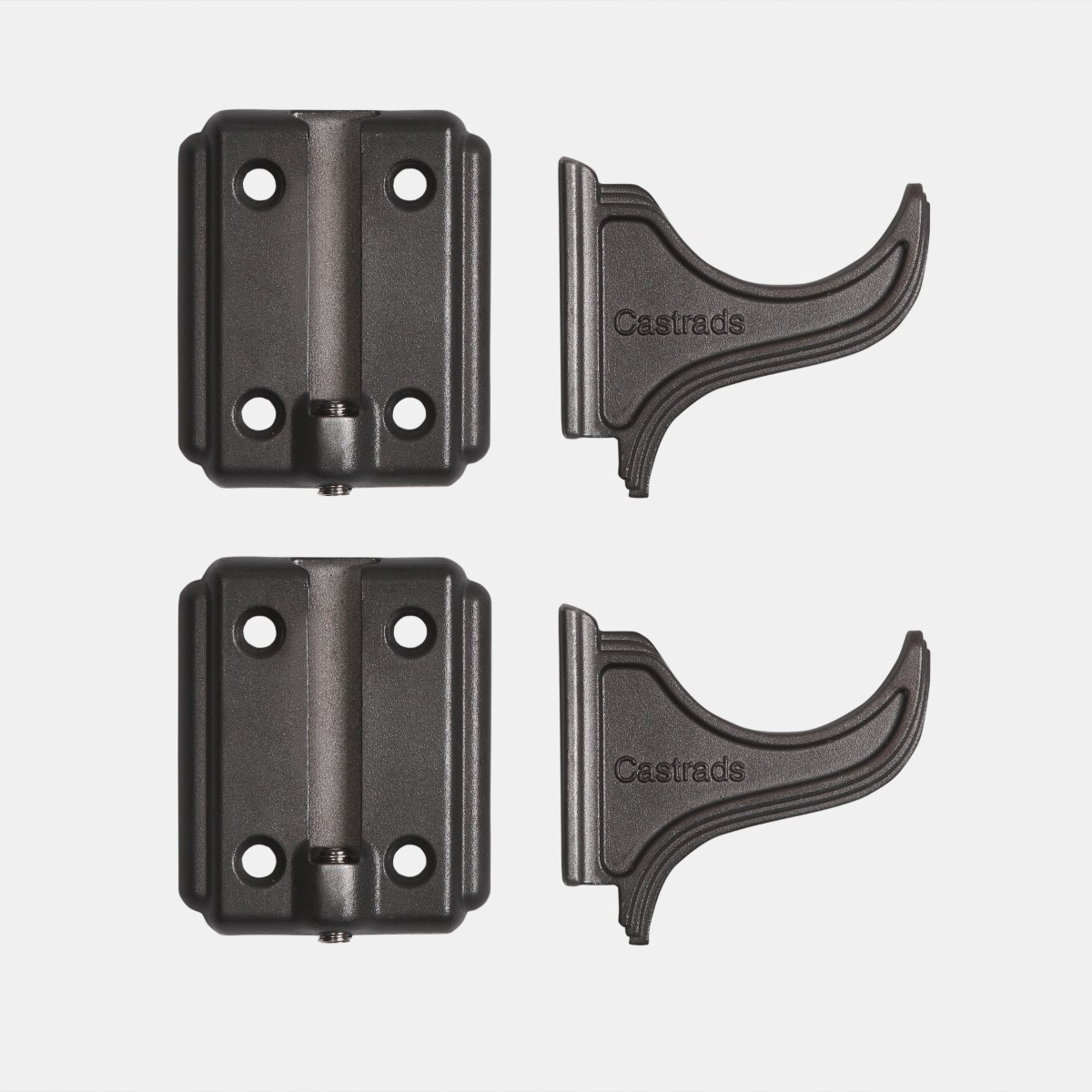

| 49mm | ATL-WBP-49 | 49mm | 81mm | 79mm | 51mm |

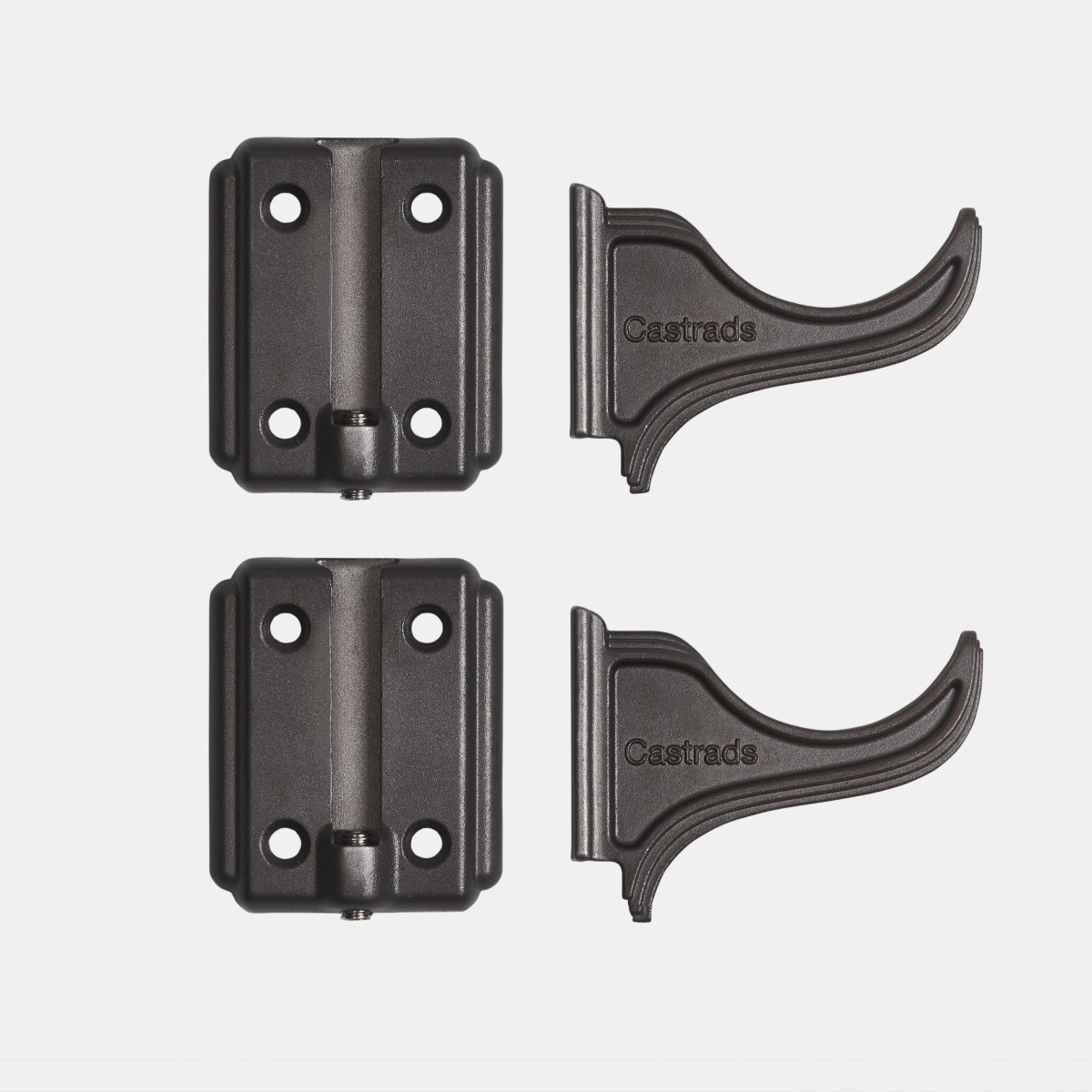

| 63mm | ATL-WBP-63 | 63mm | 99mm | 84mm | 51mm |

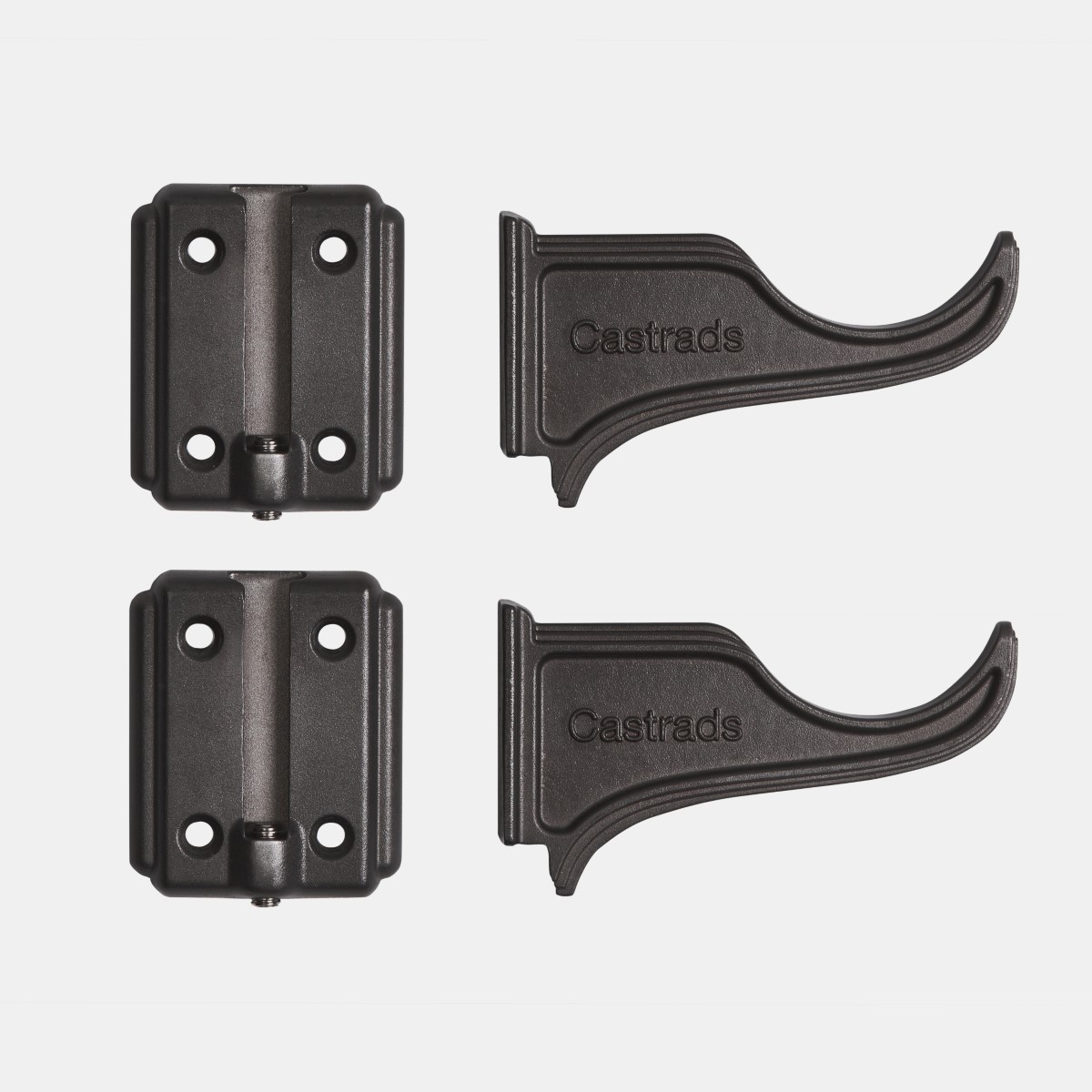

| 93mm | ATL-WBP-93 | 93mm | 129mm | 84mm | 51mm |

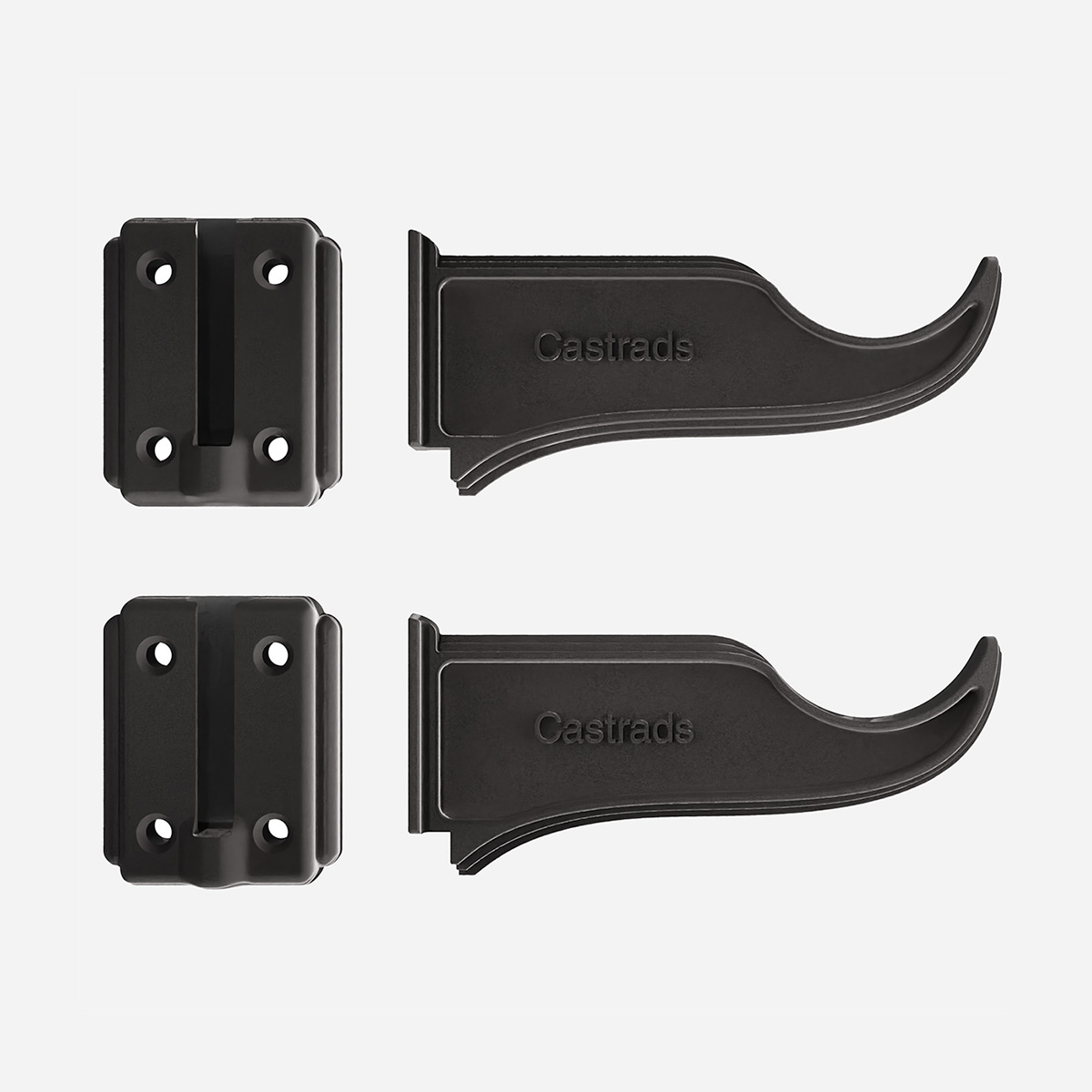

| 130mm | ATL-WBP-130 | 130mm | 166mm | 84mm | 51mm |
Compatible Models
| Nominal Size | Radiator Models |
| 49mm | Neo Classic 2C, Pall MaII 2C, Ideal Classic Wall, Neo Hospital Narrow, Beeston Hospital Narrow, Crane Hospital Narrow |
| 63mm | Neo Classic 2C, Pall MaII 2C, Ideal Classic Wall, Neo Hospital Narrow, Beeston Hospital Narrow, Crane Hospital Narrow |
| 93mm | Neo Classic 4C, Ideal Classic 4C, Neo Hospital Medium, Beeston Hospital Medium, Crane Hospital Medium, Sunbeam |
| 130mm | Neo Classic 6 Col, Ideal Classic 6 Col, Neo Hospital Wide, Beeston Hospital Wide, Crane Hospital Wide |
Colour matching available
Atlas brackets are supplied in black iron as standard for radiators in Bare Metal, and Signature Dark finishes, but for custom painted radiators we are able to spray the brackets alongside the radiators for a perfect colour match.
